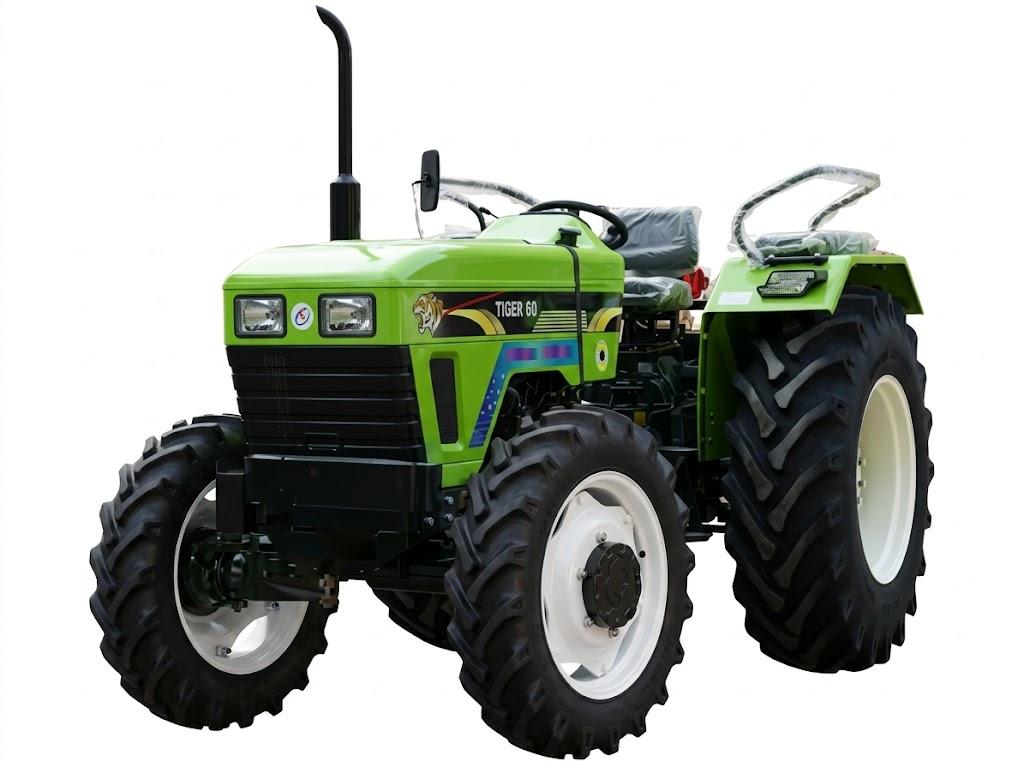

Tiger-60 4wd
Overview
HP (Cat.)
60
Cubic Capacity (cc)
3120
clutch
single/Dual
PTO
540
Brakes
OIB
Steering
Mechanical / Power Steering
Lift Capacity
2200
Front Tyre
6.00 x 16
Rear Tyre
16.9 x 28
Future
Clutch Type
Dual Clutch
Steering Type
Power Steering
Brakes
Oil Immersed Brakes
Axle Type
Straight Rear Axle
Capacity
heavy Lifting Capacity
Gear
Heavy duty gear box
electric
Cherger in cabin
Additional Features
Wheels
Four Wheel Drive
PTO
Revised PTO
Gear
Side Gear
Brakes
Trailor Brakes
Calling
One Touch Calling
location
GPRS
radio
AM/FM Radio
Overview
Engine
Kirloskar
Model
3R 1040
HP (Cat.)
55 HP
Category
Type
4 Stroke
Diesel engine
Bore × Stroke
105 × 120 mm
Displacement
3120 cc
Air Cleanser
Dry Type
Transmission
Clutch Type
Dual, dry friction plate
Gear box type
Combination of constant & sliding mesh
Number of Gears
8 forward, 2 reverse
Range of Speed
Forward
2.15-34.12 km/hr
Reverse
2.99-11.73 km/hr
PTO
6 splines/540rpm / 750rpm Forward and Reverse
Steering
Power steering double acting
Brakes
wet disc
Hydraulics
Type
Automatic depth & draft control
Lift capacity
2200kg
Diesel tank capacity
57 ltrs
Front Tyre
9.50 x 20
Rear Tyre
14.9 X28 / 16.9 x 28
Overall Length
2310mm
Total Weight
2090kg
Additional Features
Heavy Duty Gear Box
Side gear
Heavy Lifting Capacity
Trailer Brakes
Charger in Cabin
One Touch Calling
Four Wheel Drive
GPS
Revised PTO
FM
